RESOURCES • PDF DOWNLOADS

Anchor Metals product references.

Our catalog, structural reference, and color chart with the panel profiles, trim profiles, steel shapes, and finish colors used in real metal building scopes.

Anchor Metals Product Catalog — PDF preview

PDF

Open previewView

Anchor Metals Product Catalog

We use this catalog to document our panel profiles and trim profiles the same way they appear on job specs and takeoffs.

Anchor Metals Panel and Structural Reference — PDF preview

PDF

Open previewView

Anchor Metals Panel and Structural Reference

We use this one sheet to document common panels, trim availability, and structural steel items that appear on metal building scopes.

PDF

Open previewView

Anchor Metals Color Chart

We use this chart to document common panel and trim finish colors using names that match how colors are requested and ordered.

PDF

Open previewView

Anchor Metals Product Catalog

Open PDF Download

We use this catalog to document our panel profiles and trim profiles the same way they appear on job specs and takeoffs.

Panels shown include R Panel and PBR, Tite Lock Plus, U Panel and PBU, Structural Snap, Mechanical Seam, Armco, WP1000, Snaplock, and Nailstrip.
Trim profiles include ridge, eave, rake, gutter, downspout, peak box, framed opening trims, corners, angles, transitions, and die formed flashing details.
The catalog also includes residential, commercial, and mini storage trim groupings that are commonly requested on metal building scopes.

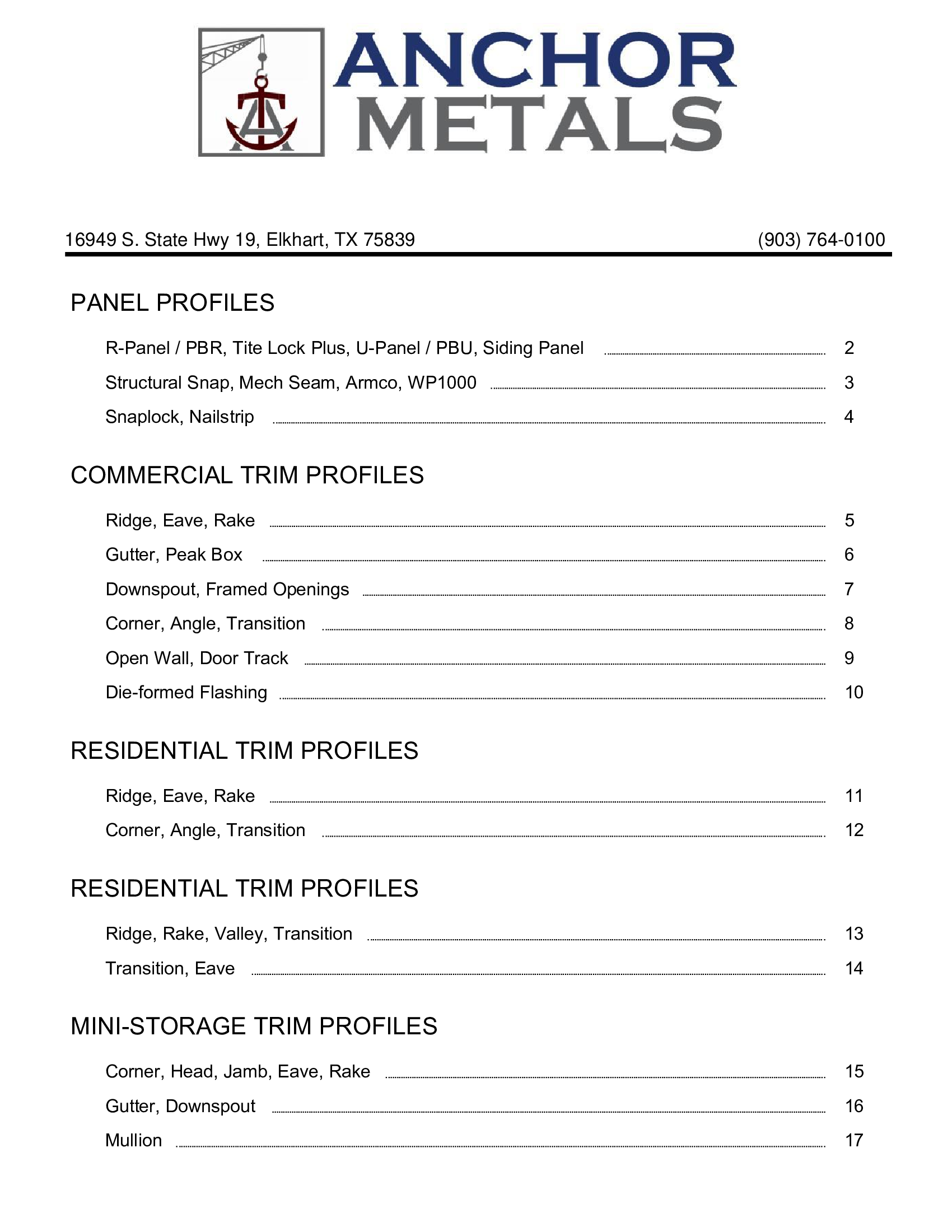

Panel profiles listed in the catalog

This PDF lists the panel families we produce with the names used in the field. You will see R Panel and PBR, Tite Lock Plus, U Panel and PBU, Structural Snap, Mechanical Seam, Armco, WP1000, Snaplock, and Nailstrip. Each profile is shown so the name and the shape stay consistent between the quote and the roof or wall system that gets installed.

Trim profiles and flashing items included

We include the trim items that show up on real takeoffs and trim packages. Ridge, eave, and rake trims are listed along with gutters, downspouts, peak boxes, corners, angles, and transitions. Framed opening trims are shown for common door and window conditions. Die formed flashing is also referenced for details that require a tighter fit.

Mini storage and residential trim groupings

The catalog includes residential and mini storage trim sets such as head, jamb, eave, rake, and gutter and downspout pieces, plus mullion references. These are the trim names that typically appear on mini storage trim schedules and owner spec sheets.

PDF

Open previewView

Anchor Metals Panel and Structural Reference

Open PDF Download

We use this one sheet to document common panels, trim availability, and structural steel items that appear on metal building scopes.

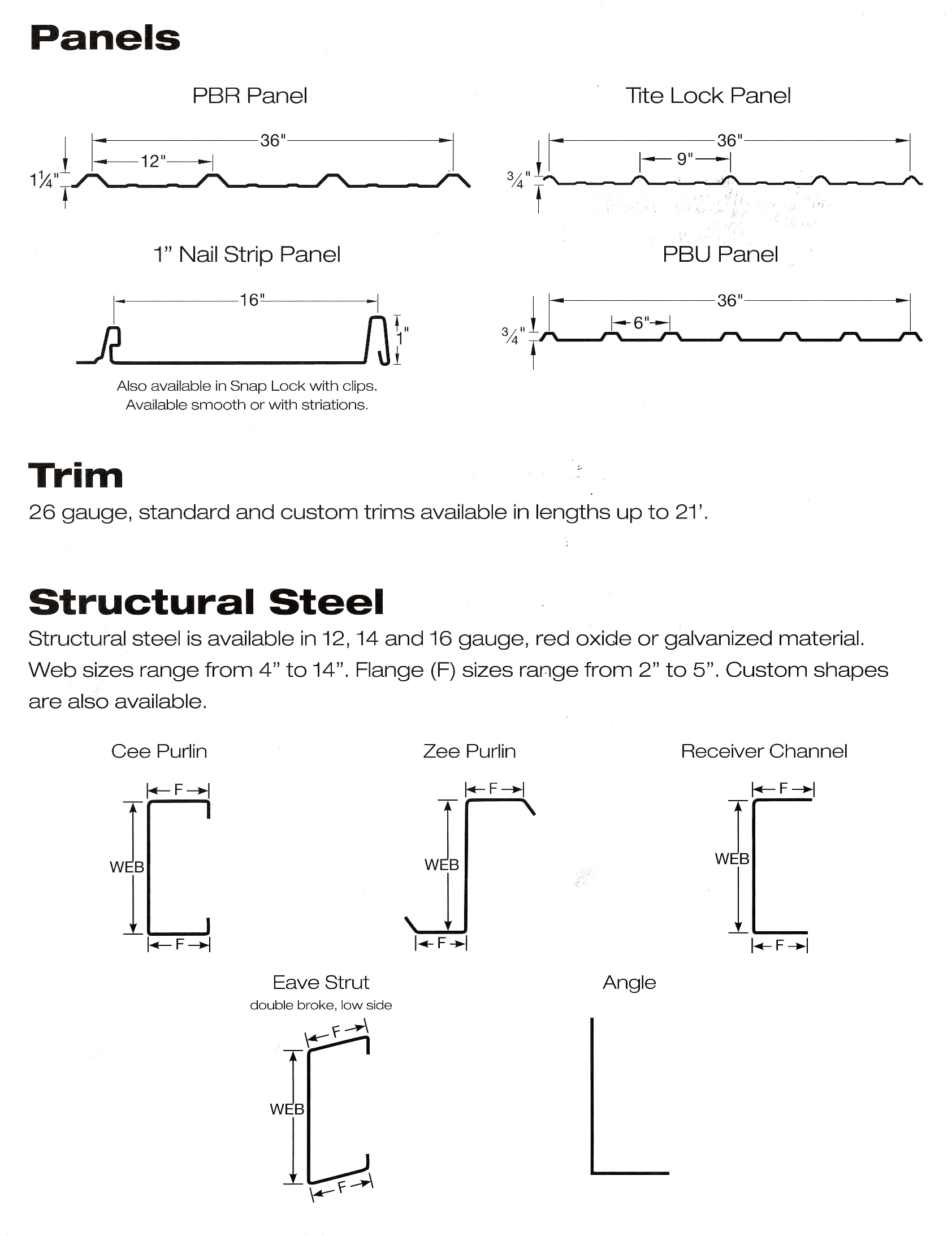

Structural shapes listed include Cee purlin, Zee purlin, receiver channel, eave strut, and angle.
Gauges and finishes include 12 gauge, 14 gauge, and 16 gauge with red oxide and galvanized options.
Trim notes include 26 gauge trim in standard and custom profiles with longer length availability up to 21 feet.

Structural shapes listed on the sheet

This PDF references common structural members used for roof and wall framing. Items listed include Cee purlin, Zee purlin, receiver channel, eave strut, and angle. These are the names that show up on structural takeoffs, supplier quotes, and framing packages.

Gauge and finish options referenced

The sheet includes typical gauge availability in 12 gauge, 14 gauge, and 16 gauge. It also lists common finish options such as red oxide and galvanized. These terms are commonly used on purchase orders and spec sheets for structural steel packages.

Trim availability notes included

Trim availability is summarized with the same wording used in ordering. The PDF references 26 gauge trim and indicates standard and custom trim options. It also includes a longer length note up to 21 feet, which is commonly requested for long runs like rake, eave, and gutter related trims.

PDF

Open previewView

Anchor Metals Color Chart

Open PDF Download

We use this chart to document common panel and trim finish colors using names that match how colors are requested and ordered.

Whites and neutrals include Brite White, Polar White, Light Stone, Tan, Desert Sand, Taupe, Ash Gray, Pewter Gray, Charcoal Gray, and Black.
Blues include Hawaiian Blue and Gallery Blue. Reds include Rustic Red and Crimson Red. Greens include Colony Green, Hunter Green, and Fern Green.
Metallic and specialty finishes include Copper Metallic, Burnished Slate, Silver Metallic, and Galvalume.

Whites and neutral colors shown on the chart

This PDF includes common neutrals used for roofs, walls, and trim packages. Brite White and Polar White are listed along with Light Stone, Tan, Desert Sand, Taupe, Ash Gray, Pewter Gray, Charcoal Gray, and Black. These are color names that commonly appear in metal building submittals and material schedules.

Blue, red, and green color options listed

The chart includes Hawaiian Blue and Gallery Blue, Rustic Red and Crimson Red, and greens such as Colony Green, Hunter Green, and Fern Green. These colors are frequently used for accent walls, wainscot, fascia, and contrasting trim when a building needs a stronger look than a neutral package.

Metallic and specialty finishes included

Specialty finishes listed include Copper Metallic, Burnished Slate, Silver Metallic, and Galvalume. These finish names are commonly referenced for roof packages, modern elevations, and metallic trim and accessory coordination.
